Running Hippius Blockchain Node

This guide explains how to set up and run a Hippius Substrate-based blockchain node for storage miners. The blockchain node is required for miners to participate in the network and register on-chain.

note

This guide is specifically for miner nodes. If you're setting up a validator node, please refer to the validator setup guide.

Complete Miner Setup

To run a complete Hippius storage miner, you need three components running:

1. ✅ Hippius Blockchain Node (this guide) - For on-chain registration and network participation
2. ✅ IPFS Node (covered in this guide) - For distributed storage
3. ✅ Arion Miner - The actual mining software

After completing this guide, proceed to the Arion Miner Setup to run the mining software.

Server Requirements

Ideal Server Specifications

To run both the Hippius blockchain node and IPFS with a ZFS pool efficiently, these are the recommended server specifications:

CPU

• Minimum: 4 dedicated cores (8 vCPUs)
• Recommended: 8+ dedicated cores (16+ vCPUs)
• Reasoning: The blockchain node needs consistent CPU performance for validation and processing. ZFS benefits from additional cores for checksumming and compression operations.

Memory (RAM)

• Minimum: 16GB
• Recommended: 32GB or more
• Reasoning:
  • Blockchain nodes typically require 8-16GB RAM for optimal performance
  • ZFS is memory-hungry and benefits significantly from extra RAM for the ARC cache
  • IPFS can use substantial memory when handling many concurrent operations

Storage

Minimum Storage Requirement

Miners must provide at least 2TB of total storage capacity. This is a mandatory requirement to participate in the network.

Total Storage Breakdown:

System Disk:

• 100GB+ SSD for OS and applications

ZFS Pool for IPFS (Primary Storage):

• Minimum: 2TB usable space (required)
• Recommended: 4TB+ usable space
• Disk Type: NVMe SSDs or enterprise SSDs preferred for performance
• Configuration: At least 2 disks for basic redundancy (mirror)
• ZFS ARC Cache: Benefits greatly from additional RAM

Blockchain Data:

• Initial: 100GB reserved, SSD-based storage
• Growth: Plan for 50-100GB+ annual growth

Minimum Total: 2TB+ (primarily for IPFS storage pool)

Network

• Bandwidth: 1Gbps minimum, with at least 100Mbps sustained throughput
• Monthly Traffic: Plan for 5-10TB+ of monthly traffic (especially for IPFS)
• Public IP: Static public IP address recommended

Prerequisites

Before starting, ensure you have the following installed:

1. Rust Toolchain

   • Install Rust via rustup: curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh
   • Install nightly toolchain: rustup install nightly
   • Update Rust: rustup update

2. Git

   • Install Git from git-scm.com
   • Ubuntu/Debian: sudo apt install git

3. Build Dependencies

   # Ubuntu/Debian
   sudo apt update
   sudo apt install -y build-essential clang curl libssl-dev llvm libudev-dev make protobuf-compiler

4. Key Pair

   • You'll need a mnemonic phrase or seed for your miner account
   • This should be the same account used in the Arion miner registration

1. Clone and Build the Node

Clone the Repository

# Clone the Hippius brain repository
git clone https://github.com/thenervelab/thebrain.git
cd thebrain

# Ensure you're on the latest version
git pull origin main

Build the Node

# Build the release binary (this may take 15-30 minutes)
cargo build --release

# The binary will be at: target/release/hippius

Verify Build

# Check the binary works
./target/release/hippius --version

2. Install and Run IPFS Node

The Arion miner requires a running IPFS node for distributed storage operations. You need to install, configure, and run IPFS in the background.

info

IPFS must be running continuously alongside your Arion miner. The miner uses IPFS to store and retrieve data shards.

Install IPFS

# Download IPFS (Kubo) - latest version
wget https://dist.ipfs.tech/kubo/v0.25.0/kubo_v0.25.0_linux-amd64.tar.gz

# Extract the archive
tar -xvzf kubo_v0.25.0_linux-amd64.tar.gz

# Install IPFS binary
cd kubo
sudo bash install.sh

# Verify installation
ipfs --version

Initialize IPFS

# Initialize IPFS repository (creates ~/.ipfs)
ipfs init

# Optional: Configure IPFS for server profile (recommended for miners)
ipfs config profile apply server

Configure IPFS for Storage Mining

# Set storage limits (adjust based on your available storage)
ipfs config Datastore.StorageMax "2TB"

# Enable garbage collection
ipfs config --json Datastore.GCPeriod '"1h"'

# Optional: Configure API and gateway ports
ipfs config Addresses.API /ip4/127.0.0.1/tcp/5001
ipfs config Addresses.Gateway /ip4/127.0.0.1/tcp/8080

Run IPFS as Systemd Service (Recommended)

Create /etc/systemd/system/ipfs.service:

[Unit]
Description=IPFS Daemon
After=network.target

[Service]
Type=simple
User=ubuntu
Environment="IPFS_PATH=/home/ubuntu/.ipfs"
ExecStart=/usr/local/bin/ipfs daemon
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

Enable and start the IPFS service:

# Start the IPFS service
sudo systemctl daemon-reload
sudo systemctl enable ipfs
sudo systemctl start ipfs

# Check status
sudo systemctl status ipfs

# View logs
journalctl -u ipfs -f

Verify IPFS is Running

# Check IPFS daemon status
ipfs swarm peers

# Check IPFS ID (your node's identity)
ipfs id

# Test IPFS storage
echo "Hello IPFS" | ipfs add

tip

Keep the IPFS daemon running at all times. The Arion miner depends on IPFS for distributed storage operations. Without IPFS running, the miner cannot store or retrieve data shards.

3. Run the Blockchain Node

Make Binary Executable

chmod +x ./target/release/hippius

Start the Node

Use the following command with the validator's P2P identity:

./target/release/hippius \
  --base-path /var/lib/hippius/chain \
  --chain mainnet \
  --bootnodes /ip4/57.128.82.161/tcp/30333/p2p/12D3KooWMuNG6ASCMDsyA45sUgYsYs1qHHrhkfhaMx7QNF98aWMZ \
  --offchain-worker Always \
  --name "My Miner Node" \
  --rpc-cors all \
  --rpc-methods Unsafe \
  --rpc-external \
  --ws-external

Important Parameters:

Parameter	Description	Required
--base-path	Directory for blockchain data	Yes
--chain	Chain specification file	Yes
--bootnodes	Validator node(s) to connect to	Yes
--offchain-worker	Enable offchain worker (required for miners)	Yes
--name	Human-readable node name	Optional
--rpc-cors	CORS settings for RPC	Optional
--rpc-methods	RPC methods to expose	Optional
--ws-external	Allow external WebSocket connections	Optional

Run as Systemd Service (Recommended)

Create /etc/systemd/system/hippius-node.service:

[Unit]
Description=Hippius Blockchain Node
After=network.target

[Service]
Type=simple
User=ubuntu
WorkingDirectory=/home/ubuntu/thebrain
ExecStart=/usr/local/bin/hippius \
  --base-path /var/lib/hippius/chain \
  --chain /home/ubuntu/thebrain/customSpec.json \
  --bootnodes /ip4/57.128.82.161/tcp/30333/p2p/12D3KooWMuNG6ASCMDsyA45sUgYsYs1qHHrhkfhaMx7QNF98aWMZ \
  --offchain-worker Always \
  --name "Miner Node" \
  --rpc-cors all \
  --rpc-methods Unsafe \
  --rpc-external \
  --ws-external
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

Enable and start the service:

# Copy binary to system location
sudo cp target/release/hippius /usr/local/bin/

# Create data directory
sudo mkdir -p /var/lib/hippius/chain
sudo chown -R $USER:$USER /var/lib/hippius

# Start the service
sudo systemctl daemon-reload
sudo systemctl enable hippius-node
sudo systemctl start hippius-node

# Check status
sudo systemctl status hippius-node

# View logs
journalctl -u hippius-node -f

4. Insert Keys via RPC

After the node is running, you need to insert your miner keys. This allows the node to sign transactions on behalf of your miner account.

Get Your Node Identity

When the node starts, it will log its Node Identity. Look for a line like:

🏷  Local node identity is: 12D3KooWXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Insert Keys Using RPC

The key type ID for miners is hips:

Option A: Using curl

curl -H "Content-Type: application/json" \
  -d '{
    "jsonrpc": "2.0",
    "method": "author_insertKey",
    "params": [
      "hips",
      "<your_mnemonic_phrase>",
      "<your_public_key>"
    ],
    "id": 1
  }' \
  http://localhost:9944

Option B: Using Polkadot.js Apps

1. Navigate to Polkadot.js Apps
2. Connect to your local node: ws://localhost:9944
3. Go to Developer → RPC Calls
4. Select author → insertKey
5. Fill in the parameters:
   • keyType: hips
   • suri: Your mnemonic phrase or seed
   • publicKey: Your account's public key (hex format)
6. Submit the call

Verify Key Insertion

Check the logs for a success message:

journalctl -u hippius-node -f | grep "Inserted key"

5. Register Your Node On-Chain

After inserting keys, you need to register your node in the Registration Pallet. This step connects your blockchain node identity with your miner registration.

Get Required Information

1. Node Identity: Found in node logs (step 4 above)
2. IPFS Node ID: If running IPFS services (optional for basic mining)
3. Account: The account whose keys you inserted

Choose Registration Method

There are two registration methods depending on whether you're registering a main node (coldkey) or a child node (hotkey):

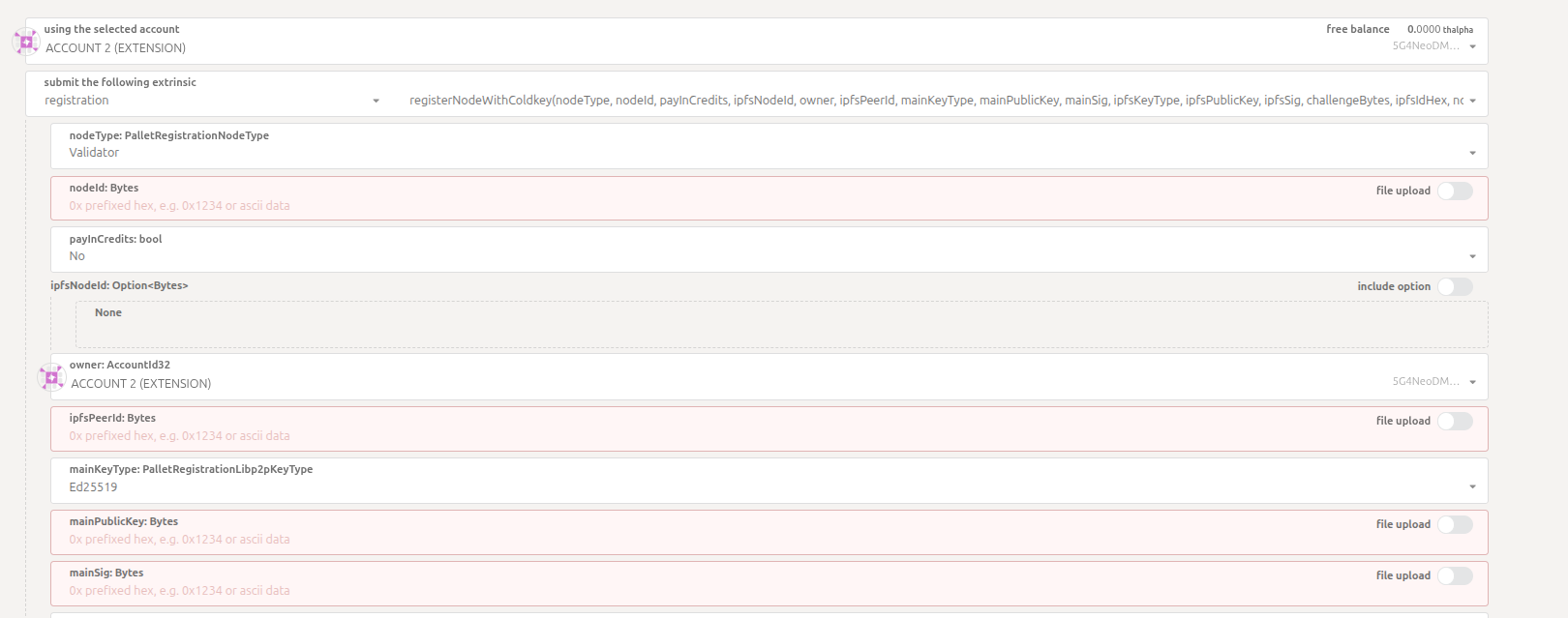

Option A: Register Main Node (Coldkey)

Use this method if you're registering your primary/main account node.

1. Navigate to Polkadot.js Apps
2. Go to Developer → Extrinsics
3. Select your main account (coldkey)
4. Choose pallet: registration
5. Choose extrinsic: coldkeyNodeRegistration
6. Fill in the parameters:
   • nodeType: Select StorageMiner
   • nodeId: Your node identity (from step 4)
   • ipfsNodeId: Optional - leave as None if not using IPFS
   • payInCredits: Select No
7. Sign and submit the transaction

tip

The signing account should be the same account whose keys you inserted via RPC in step 4. This ensures the node can properly sign transactions on-chain.

Option B: Register Child Node (Hotkey)

To register a hotkey (child node), please follow the hotkey registration guide in the Arion Miner documentation:

📖 Follow the Hotkey Registration Guide in Arion Miner Setup

This guide will walk you through:

1. Setting up a proxy relationship between your coldkey and hotkey
2. Generating the required cryptographic signatures
3. Registering your hotkey in the Arion pallet

After completing the hotkey registration, return here to continue with the miner setup.

6. Setup and Run Arion Miner

Critical Next Step

After setting up your blockchain node and IPFS, you must set up and run the Arion Miner to actually perform storage mining operations and earn rewards.

The blockchain node and IPFS are prerequisites that run in the background. The Arion Miner is the actual mining software that:

• Connects to the validator via P2P
• Stores and retrieves data shards using IPFS
• Participates in proof-of-storage challenges
• Earns mining rewards

🚀 Proceed to Arion Miner Setup Guide to complete your miner setup.

7. Verify Node Operation

Check Sync Status

# View logs
journalctl -u hippius-node -f

# Look for sync progress:
# ⚙️  Syncing 1234 bps, target=#56789 (12 peers)

Check RPC Connectivity

# Test RPC endpoint
curl -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","method":"system_health","params":[],"id":1}' \
  http://localhost:9944

# Expected response:
# {"jsonrpc":"2.0","result":{"peers":3,"isSyncing":false,"shouldHavePeers":true},"id":1}

Monitor Node Health

# Check process status
sudo systemctl status hippius-node

# Check recent logs
journalctl -u hippius-node --since "10 minutes ago"

# Check disk usage
df -h /var/lib/hippius/chain

Verify IPFS is Running

# Check IPFS status
sudo systemctl status ipfs

# View IPFS logs
journalctl -u ipfs -f

8. Configuration Reference

Network Ports

Port	Protocol	Purpose	Required
30333	TCP	P2P communication	Yes
9944	TCP	WebSocket RPC	Optional
9933	TCP	HTTP RPC	Optional

Firewall Configuration

# Allow P2P port
sudo ufw allow 30333/tcp

# Allow RPC ports (if exposing externally - use with caution)
sudo ufw allow 9944/tcp
sudo ufw allow 9933/tcp

9. Troubleshooting

"Failed to connect to bootnode"

• Verify the bootnode address is correct
• Check network connectivity: ping 57.128.82.161
• Ensure port 30333 is not blocked by firewall

"RPC call failed"

• Ensure node is running: sudo systemctl status hippius-node
• Check RPC is enabled with --rpc-external and --ws-external
• Verify RPC port is accessible: netstat -tlnp | grep 9944

"Key insertion failed"

• Ensure the mnemonic phrase is correct
• Verify the public key matches the mnemonic
• Check that RPC methods are enabled with --rpc-methods Unsafe

Node Won't Sync

• Verify bootnode is reachable
• Check system time is synchronized: timedatectl
• Ensure sufficient disk space: df -h

10. Maintenance

Update Node

cd ~/thebrain
git pull origin main
cargo build --release
sudo systemctl restart hippius-node

Backup Node Data

# Backup keystore (important!)
sudo tar -czf hippius-keystore-backup.tar.gz /var/lib/hippius/chain/chains/*/keystore/

# Store securely - this contains your node's identity

Clean Old Chain Data

# Stop node
sudo systemctl stop hippius-node

# Remove chain data (keeps keystore)
sudo rm -rf /var/lib/hippius/chain/chains/*/db

# Restart to resync
sudo systemctl start hippius-node

11. Next Steps

After setting up your blockchain node and IPFS:

1. ✅ Ensure blockchain node is fully synced
2. ✅ Verify IPFS daemon is running
3. ✅ Verify keys are inserted in blockchain node
4. ✅ Register node on-chain (coldkey or child node)
5. 🚀 Set up and run Arion Miner - Required to start mining!

Important

The blockchain node and IPFS must remain running in the background. The Arion Miner is what actually performs storage mining operations. You need all three components (blockchain node, IPFS, and Arion miner) running to earn rewards.
